I joined the Australian Electric Vehicle Association (AEVA). The Geelong sub-branch has helped me convert the Imp. The members suggested using a used Toyota Prius Electric motor and differential minus the ICE. The conversion would replace both the original engine and gearbox. It would require modifying the drive shaft between the unit and the wheels. However, it was not suitable as the Hillman Imp gearbox under the rear seat. Prius drive chain was too tall. Another option was to use the Toyota RAV4 hybrid rear motor on the 4WD model. This unit contains an electric motor and differential. Again, the drive shaft to the wheels would need to be modified, But it was just a little too tall to fit.
While investigating these options, I viewed YouTube videos on Toyota Prius
repairs by 'WeberAuto' (John Kelly). Also, see their web page.
Used motors from wrecked EVs are too big. I looked at buying a new motor.
Most are too powerful for a small car or too small, suitable only for
golf carts, etc.
Original Imp Motor Specifications
Imp Leaflets for more details.
Engine: 4 Cylinder 875cc (cm3)
Horsepower:42HP @amp 5000rpm (31.3kW)
Torque: 52lb.ft @2800rpm (70.5N.m)
Weight: 13.5cwt ( 686kg)
The electric Motor
The HPEVS AC-51 or the Motenergy ME1616 appeared to be about the right
size for the Imp. I purchased the Motenergy ME1616 motor.
Motor Specifications
Electric Motor: Motenergy ME1616
Brush-less 3 phase Permanent magnet motor Liquid-cooled,
closed frame, sealed motor to IP65 (Note 1)
Operating at 24 to 100 V DC
250A Continuous, 550A (1min)
6000rpm max.
Weight 25.2kg
From the performance graph supplied with the motor.
Power: About 32kW at 5000rpm
Torque: About 75M.m from 0 to 4500rpm, falling to 62N.m at 5000rpm.
Note 1: IP65 is a water resistance rating that means a product is
protected against water jets from any direction, but it's not fully
waterproof. It can be used outside in the rain.

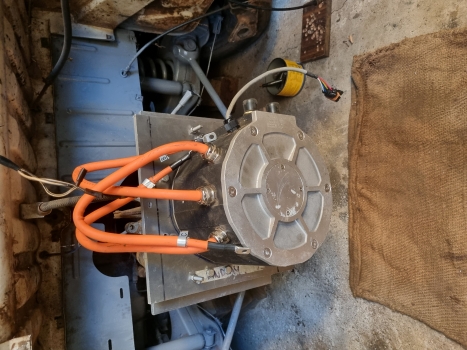

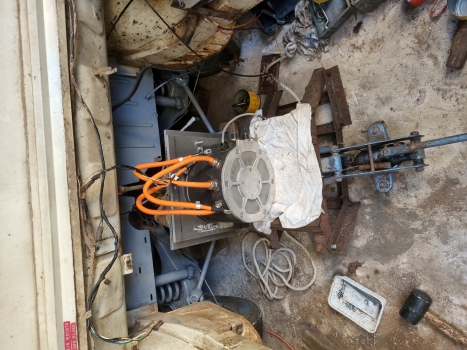

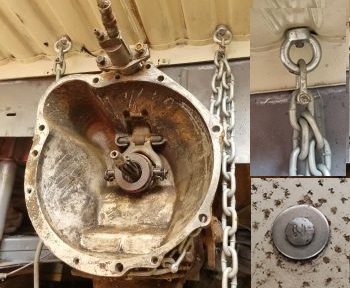

The electric motor will be in place of the original Imp motor, and they
will use the original clutch and gearbox.
The electric motor is on a Homemade gearbox jack used for clutch replacement/repairs. Things are done differently with the Hillman Imp.
The ring gear was removed from the flywheel. Electric motors do not require a flywheel, but a flywheel is necessary for the clutch. The flywheel was machined to reduce its thickness from 20mm to 10mm. The original weight was ?kg, and the new weight was 3.0kg. The moment of inertia (rotational inertia) is the sum of the mr2, and weight at a bigger radius has a bigger inertia.

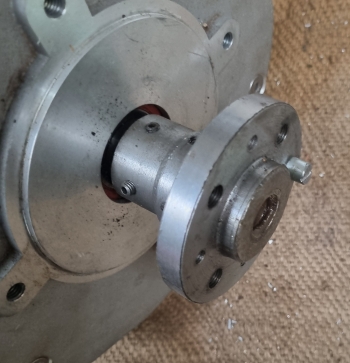

The engineering work cut a keyway in the flange. A self-lucubrating bearing was purchased and fitted for the gearbox shaft.
The lathe work was not as easy as it should have been. My Chinese-designed and made lathe was not big enough, and the quality was lacking.

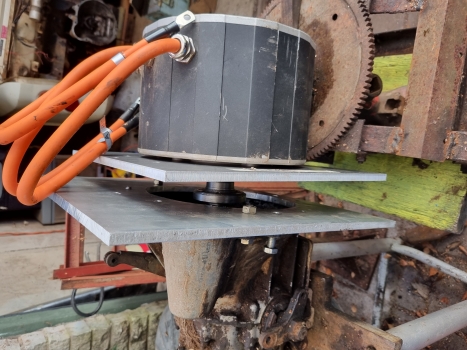

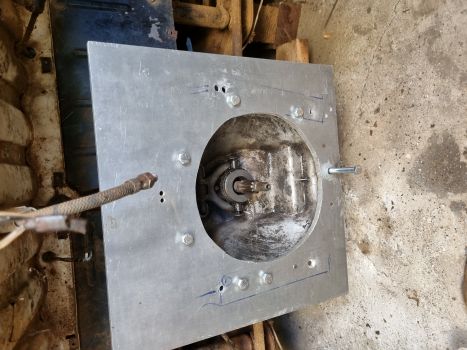

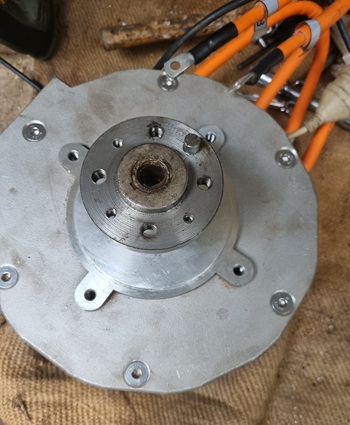

I had a 10mm thick Aluminium plate laser cut for the Electric motor. I made the gearbox a 10mm thick Aluminium plate. I drilled a hole in the centre to fit the Aluminium plate. I clamped it to the gearbox. I drilled from the back of the gearbox. I clamped the two plates together, and I transferred the holes to the motor plate. I needed a large circle in the gearbox plate. My portable jig electric jigsaw was able to do it, but it took an hour to do

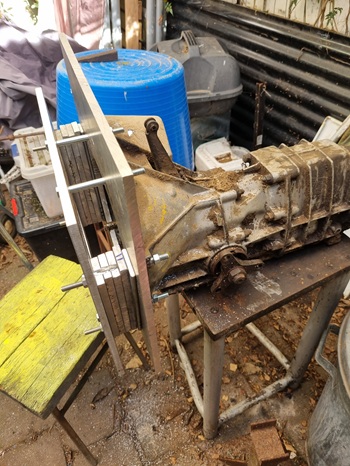

The Aluminium Plate mounted on the gearboxThe plates needed to be separated by 45mm. Strips of Aluminium were cut for packing. Longer bolts were used to clamp the assembly together.
45mm spacing needed
